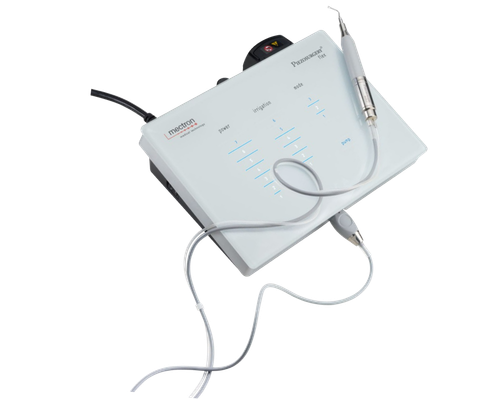

PIEZOSURGERY®
flex
Designed to be flexible
An efficient, versatile and user-friendly device offering maximum precision and minimum risk for your clinical practice.
Advantages of PIEZOSURGERY® technology (with icons)
Selective Cut
protects any kind of soft tissue
Micrometric Cut
maximum surgical precision and intra-operative sensitivity
Cavitation Effect
maximum intra-operative visibility
Your patients highlight:
faster healing & less post-op pain
PIEZOSURGERY®
flex
Safety and
Features
It enables you to perform standard bone surgery in a simpler, faster and safer way, and it is the ideal tool for the most complex operations thanks to the exclusive PIEZOSURGERY® inserts, which allow maximum intra-operative control without heating up the bone and keeping the soft tissue safe.
Your clinical needs always evolve and we always keep up with them, bringing maximum power and maximum speed of cut directly to your fingertips.
The unmatched precision and safety are now combined with a highly flexible user interface that makes everything easier. Settings are intuitive and fast.
Key features in the Operating Room
- Compact and lightweight
- Intuitive touchscreen interface
- Integrated irrigation system
- Plug and play simplicity
Clinical Indications
- ✓Bone Harvesting (cortical bone blocks and chips)
- ✓Osteotomy / Osteoplasty
- ✓Sinus Floor Elevation (crestal and lateral approach)
- ✓Extraction (including impacted teeth and roots)
- ✓Implant Site Preparation
- ✓Bone Splitting / Ridge Expansion
- ✓Endodontic Surgery / Apicoectomy
- ✓Orthognathic Surgery
- ✓Craniofacial Osteotomies
Surgeon Benefits
Tissue Preservation: High-frequency vibrations cut mineralized tissue efficiently while leaving soft tissue intact, drastically reducing the risk of neural or vascular damage.
Blood-Free Surgical Site: The cavitation effect created by the ultrasonic irrigation ensures a clear and virtually blood-free surgical field.
Portability & Agility: The ultra-compact device design makes it highly portable across different surgical suites, delivering premium power with plug-and-play simplicity.
Technical Specifications
| Operating Frequency | 24,000 – 36,000 Hz |
| Fluid Delivery Rate | Adjustable, 0 - 75 ml/min |
| Handpiece | LED or standard, autoclavable up to 134°C |
| Dimensions (WxDxH) | 250 x 215 x 110 mm |
| Weight | 1.7 kg |
| Device Class | Class IIa (Medical Device Directive 93/42/EEC) |
Interested in PIEZOSURGERY® flex?
Request a brochure or schedule a live demonstration.
Discover our wide selection
For every clinical setting (spine, cranial, dental, maxillofacial, ent, orthopedics) our wide selection of inserts covers all clinical needs and surgical protocols.
Osteotomy
Osteoplasty
Drilling
Finishing
PIEZOSURGERY®
Outstanding Surgery
Success
Watch how PIEZOSURGERY® flex simplifies procedures in the operating room. Our technology ensures you always have the right tool for the job.
Access a world of information today
A comprehensive set of clinical protocols and webinars is available to support your daily practice. Select your clinical area of interest to verify.
